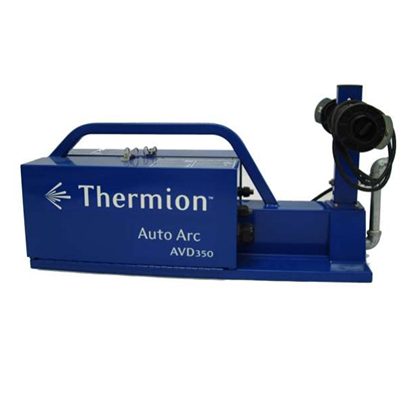

AVD 350 Twin Wire & Auto Arc Spray System

Can be operated manually or automated using 1/16", 2mm, or 3/32" dia. hard wires.

Thermion®'s AVD series utilizes our latest technology. The patented  "AVD" or Arc Voltage Drive automatically controls the motor speed to maintain a perfect arc gap, which creates consistent high-density coatings. Coupled with our recently developed Jet Force Head, which is a closed nozzle design, we are achieving unprecedented coating quality for the twin wire arc process. This new method of controlling wire feed, along with reversing the wire at the end of the spray cycle, thus eliminates wire fusing and allows for smooth starts every time the trigger is pulled.

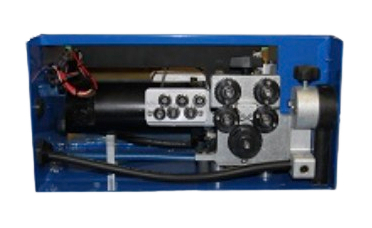

All Thermion® AVD metallizing systems use the most advanced, long-life, friction-free wire drive assemblies that include sealed roller bearings for the feed rolls and the v-grooved bearings used for wire straightening. The wire straighteners are designed into the wire drive assembly and can be easily adjusted to the wire size being sprayed. The clamping pressure for each feed roll is automatically adjusted according to wire size and type. This quick and simple wire clamping system allows consistent, trouble-free feeding of all spray wires.

Our lightweight Front End Assembly consists of two combination leads which carry the power, air and wire along with a small supplemental air line and the trigger cord.  This creates a very flexible and durable 13' gun. For the AVD 350, we have attached the Jet Force gun to create low porosity coatings.
